BPE-XE-MIR-200i
BPE-XE-MIR-200i
BPE-XE-MIR-200i
60 - 200 CFM

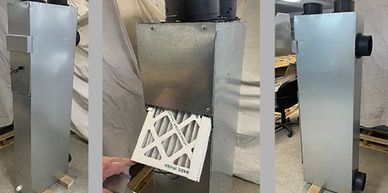

BPE-XE-MIR-200-i and the BPE-CE-MIR-200i (vertical standing unit come equipped with integral 200 cfm fans, filter, and speed controls for fans. Just plug in and add ductwork to bring in fresh air and recover heat energy from outgoing air
to achieve thermal comfort in
winter or summer.
BPE-CE-MIR-200i
BPE-XE-MIR-200i
BPE-XE-MIR-200i
60 - 200 CFM

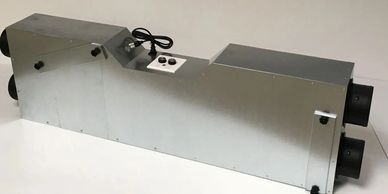

BPE-CE-MIR-200i and the BPE-XE-MIR-200i (horizontal) unit come equipped with integral 200 cfm fans, filter, and speed controls for fans. The lowest ERV profile on the market. Just plug in and add ductwork to bring in fresh air and recover heat energy from outgoing air to achieve thermal comfort in
winter or summer.
BPE-XE-MIR-300i
BPE-XE-MIR-200i
BPE-XE-MIR-300i
100 - 300 CFM
Install these units with two fans that provide 50% to 75% of nominal cfm in airflow. At this 50% to 75% flow range, the BPE units typically operate at 80% to more than 90% thermal efficiency. The 300-i Series begins with a BPE-XE-MIR-500 module, includes filter box and speed controls. Two BPE T-8 or S-8 fans and 8" connections included.
BPE-XE-MIR-400i
BPE-XE-MIR-650LA
BPE-XE-MIR-300i
100 - 400 CFM
Install these units with two fans that provide 50% to 75% of nominal cfm in airflow. At this 50% to 75% flow range, the BPE units typically operate at 80% to more than 90% thermal efficiency. The 400-i Series begins with a BPE-XE-MIR-500 module, includes filter box and speed controls. Two BPE T-10 or S-10 fans and 10" connections included.
BPE-XE-MIR-500
BPE-XE-MIR-650LA
BPE-XE-MIR-650LA
400 - 500 CFM

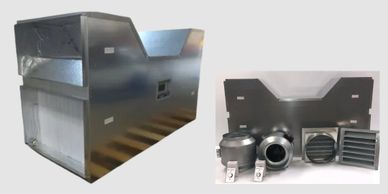

These galvanized steel units are specifically sized to handle larger homes and offices as well as light commercial spaces. Lightweight, modular, and man-portable, they will fit through a 36-inch door and make for easy installation. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE-XE-MIR-650LA
BPE-XE-MIR-650LA
BPE-XE-MIR-650LA
300 - 650 CFM

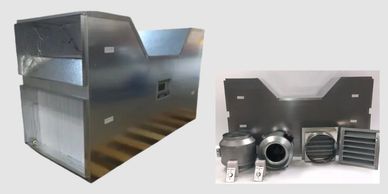

These galvanized steel units are specifically sized to handle larger homes and offices as well as light commercial spaces. Lightweight, modular, and man-portable, they will fit through a 36-inch door and make for easy installation. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE-XE-MIR-1000
400 - 1,100 CFM
These galvanized steel units are specifically sized to handle larger homes and offices as well as light commercial spaces. Lightweight, modular, and man-portable, they will fit through a 36-inch door and make for easy installation. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
*Optional integral filter slot available.
BPE-XE-MIR-2000
500 - 2,250 CFM
These galvanized steel units are specifically sized to handle larger homes and offices as well as light commercial spaces. Lightweight, modular, and man-portable, they will fit through a 36-inch door and make for easy installation. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
*Optional integral filter slot available.
BPE-XE-MIR-2000
BPE-XE-MIR-2000
BPE-XE-MIR-2000
500 - 2,250 CFM
These galvanized steel Energy Recovery Modules (ERMs) are stackable up to 20,000 cfm (10 stacked modules). The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
Lightweight and man-portable, they will fit through a 36-inch door and make for easy installation.
BPE-XE-MIR-3000
BPE-XE-MIR-2000
BPE-XE-MIR-2000
500 - 3,500 CFM
These galvanized steel Energy Recovery Modules (ERMs) are stackable. The
efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies. Lightweight and
man-portable, they will fit through a
36-inch door and make for easy
installation.

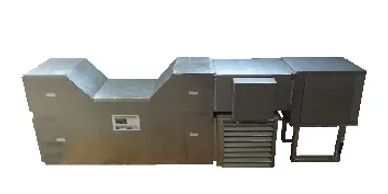

BPE-SC-UNI-1000
BPE-XE-MIR-2000
500 - 1,000 cfm

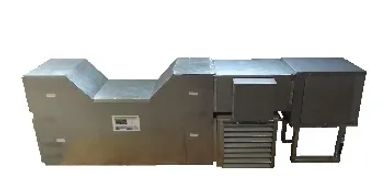

UNITARY WITH FANS AND INTEGRAL FILTERS, FANS, CONTROL BOX, INTAKE LOUVER. These galvanized steel units are specifically sized to handle commercial and industrial dedicated ventilation applications. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE-SC-UNI-2000
500 - 1,700 cfm
UNITARY WITH FANS AND INTEGRAL FILTERS, FANS, CONTROL BOX, INTAKE LOUVER. These galvanized steel Energy Recovery Modules (ERMs) are stackable up to 20,000 cfm (10 stacked modules) and are specifically sized to handle commercial and industrial dedicated ventilation applications. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE-SC-UNI-4000
BPE-SC-UNI-4000
1,000 - 4000 cfm
Two BPE-SC-UNI-2000 units stacked.
UNITARY WITH FANS AND INTEGRAL FILTERS, FANS, CONTROL BOX, INTAKE LOUVER. These galvanized steel Energy Recovery Modules (ERMs) are specifically sized to handle commercial and industrial dedicated ventilation applications. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE-SC-UNI-6000
BPE-SC-UNI-4000
3,000 - 6,000 cfm
Three BPE-SC-UNI-2000 units stacked.
UNITARY WITH FANS AND INTEGRAL FILTERS, FANS, CONTROL BOX, INTAKE LOUVER. These galvanized steel Energy Recovery Modules (ERMs) are specifically sized to handle commercial and industrial dedicated ventilation applications. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE-SC-UNI-8000
BPE-SC-UNI-12000
BPE-SC-UNI-12000
5,000 - 8,000 cfm
Four BPE-SC-UNI-2000 units stacked.
UNITARY WITH FANS AND INTEGRAL FILTERS, FANS, CONTROL BOX, INTAKE LOUVER. These galvanized steel Energy Recovery Modules (ERMs) are specifically sized to handle commercial and industrial dedicated ventilation applications. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE-SC-UNI-12000
BPE-SC-UNI-12000
BPE-SC-UNI-12000
8,000 - 12,000 cfm
Six BPE-SC-UNI-2000 units stacked.
UNITARY WITH FANS AND INTEGRAL FILTERS, FANS, CONTROL BOX, INTAKE LOUVER. These galvanized steel Energy Recovery Modules (ERMs) are specifically sized to handle commercial and industrial dedicated ventilation applications. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE-SC-UNI-16000
BPE-SC-UNI-12000
BPE-SC-UNI-16000
5,000 - 16,000 cfm
Eight BPE-SC-UNI-2000 units stacked.
UNITARY WITH FANS AND INTEGRAL FILTERS, FANS, CONTROL BOX, INTAKE LOUVER. These galvanized steel Energy Recovery Modules (ERMs) are specifically sized to handle commercial and industrial dedicated ventilation applications. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE-SC-UNI-20000
BPE-SC-UNI-20000
BPE-SC-UNI-16000
1,400 - 20,000 cfm
Ten BPE-SC-UNI-2000 units stacked.
UNITARY WITH FANS AND INTEGRAL FILTERS, FANS, CONTROL BOX, INTAKE LOUVER. These galvanized steel Energy Recovery Modules (ERMs) are specifically sized to handle commercial and industrial dedicated ventilation applications. The efficiency, depending on air flow, can be adjusted from 70% to 90+% thermal efficiencies.
BPE S6 In-Line Duct Fan
BPE S10 In-Line Duct Fan
BPE S6 In-Line Duct Fan
Airflow: 402 CFM / Duct Size: 6”
Dimensions: 7.9 x 12.6 x 8.4 in.
Noise: 32 dBA
BPE S8 In-Line Duct Fan
BPE S10 In-Line Duct Fan
BPE S6 In-Line Duct Fan
Airflow: 807 CFM / Duct Size: 8”
Dimensions: 8.5 x 11.9 x 9.2 in.
Noise: 39 dBA
BPE S10 In-Line Duct Fan
BPE S10 In-Line Duct Fan
BPE S10 In-Line Duct Fan
Airflow: 1,201 CFM / Duct Size: 10”
Dimensions: 11.3 x 15.1 x 12.2 in.
Noise: 48 dBA
BPE S12 In-Line Duct Fan
BPE S10 In-Line Duct Fan
Airflow: 1,604 CFM / Duct Size: 12”
Dimensions: 14.9 x 17.7 x 14.1 in.
Noise: 62 dBA
BPE T6 In-Line Duct Fan
BPE T6 In-Line Duct Fan
Airflow: 402 CFM / Duct Size: 6”
Dimensions: 7.9 x 12.6 x 8.4 in.
Noise: 32 dBA
BPE T8 In-Line Duct Fan
BPE T6 In-Line Duct Fan
Airflow: 807 CFM / Duct Size: 8”
Dimensions: 8.5 x 11.9 x 9.2 in.
Noise: 39 dBA
BPE T10 In-Line Duct Fan
BPE T10 In-Line Duct Fan
BPE T10 In-Line Duct Fan
Airflow: 1,201 CFM / Duct Size: 10”
Dimensions: 11.3 x 15.1 x 12.2 in.
Noise: 48 dBA
BPE T12 In-Line Duct Fan
BPE T10 In-Line Duct Fan
BPE T10 In-Line Duct Fan
Airflow: 1,604 CFM / Duct Size: 12”
Dimensions: 14.9 x 17.7 x 14.1 in.
Noise: 62 dBA

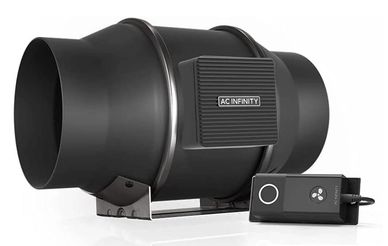

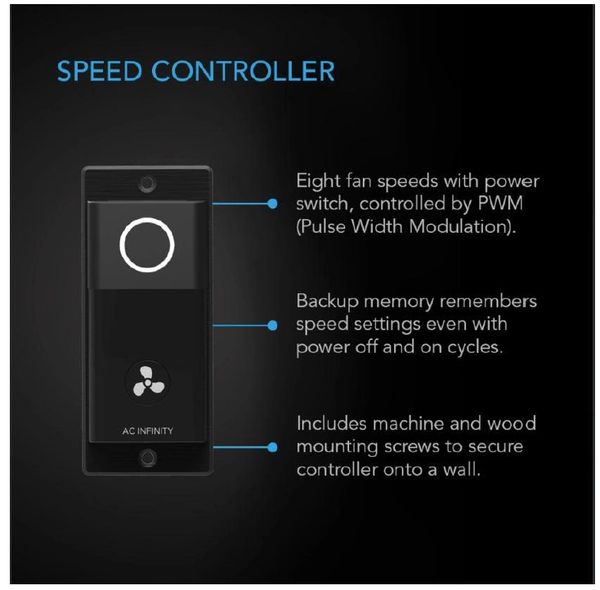

Simple Controller for 'S' Fans
- This speed controller enables you to set optimal noise and airflow levels for various environments.
- Features an EC-motor that is precisely controlled using PWM (Pulse Width Modulation).
- Eight speed options with power on/off switch to run fans at extremely low RPM speeds without generating motor noises and heat.
- Backup memory enables fans to run at customizable speeds when given power.

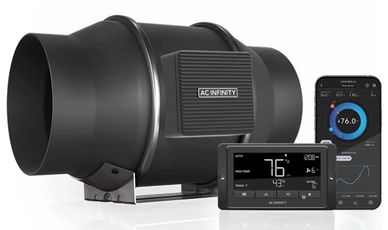

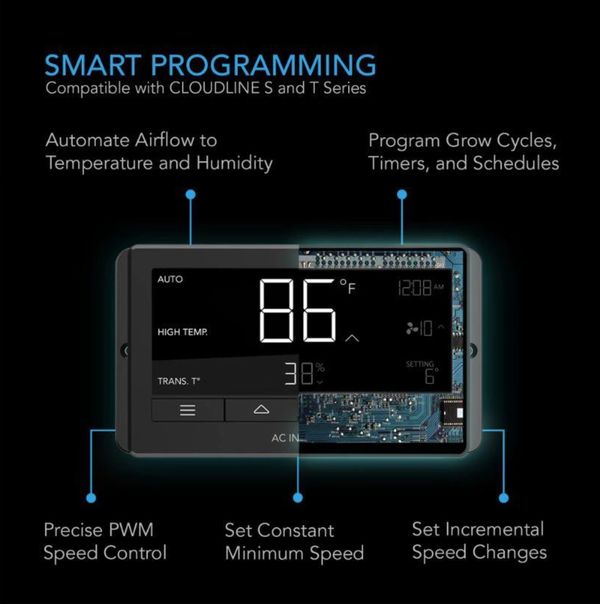

BPE Smart Controller 67
For use with up to TWO of our S or T fans.
Dynamically adjusts fan speed based on temperature and humidity conditions to produce optimal airflow. Programmable cycles, scheduling, triggers, transitions. Connect via Bluetooth to view and adjust indoor climate from afar.

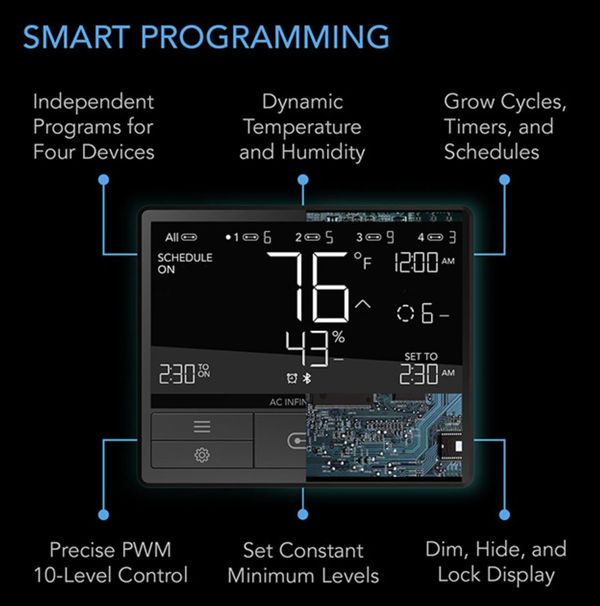

BPE Smart Controller 69
For use with up to FOUR of our S or T fans.
Dynamically adjusts fan speed based on temperature and humidity conditions to produce optimal airflow. Programmable cycles, scheduling, triggers, transitions. Connect via Bluetooth to view and adjust indoor climate from afar.
BPE uSwitch CS Controller
This expandable 2-Channel WiFi IP Relay and I/O controller can manage, sense, automatically reboot, and control any device--in this case, fans--anywhere, anytime over LAN/WAN from any iPhone, Android, PC, or MAC.
BPE 1000 Filter Box
BPE 1000 Filter Box
BPE 1000 Filter Box
Airflow: 400 - 1100 CFM
Galvanized Steel BPE filter box holds 1" to 4" filters from MERV 8 to 13. Built and sized for
BPE 1000 cfm ERVs
BPE 2000 Filter Box
BPE 1000 Filter Box
BPE 1000 Filter Box
Airflow: 800 - 2000 CFM
Galvanized Steel BPE filter box holds 1" to 4" filters from MERV 8 to 13. Built and sized for
BPE 2000 cfm ERVs
BPE 3000 Filter Box
BPE 1000 Filter Box
BPE 3000 Filter Box
Airflow: 1200 - 3000 CFM
Galvanized Steel BPE filter box holds 1" to 4" filters from MERV 8 to 13. Built and sized for
BPE 3000 cfm ERVs
